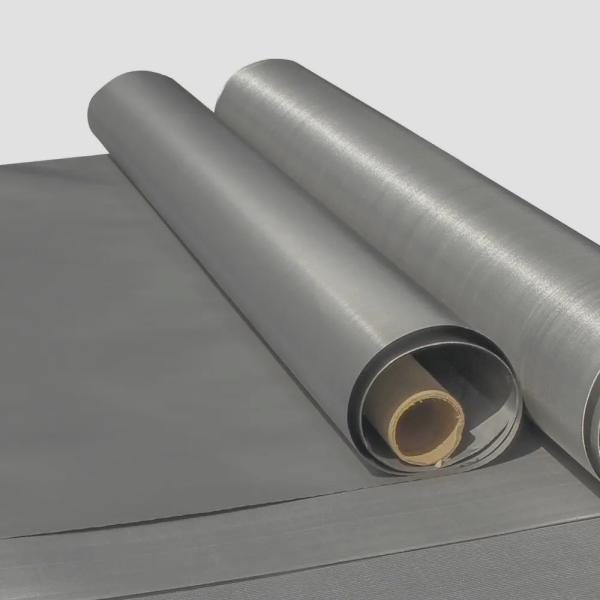

Special Wire Mesh Temperature Resistant Stainless Steel Sintered Wire Mesh Filter Elements
Quick details of Temperature Resistant Special Sintered Wire Mesh
1. O.E.M Diameter of Disc: 2.0 - 500mm
2. Customized with different Apertures from 0.1μm - 120μm
3. Customize different Thickness : 1.0 - 100mm
4. Metal wire Option: Mono-layer, Multi-layer, Mixed Materials, 316L,316 stainless steel ,Inconel wire, copper wire,Monel wire, pure nickel wire
Description of Temperature Resistant Special Sintered Wire Mesh
Temperature Resistant Special Sintered Wire Mesh also named Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but it is made of wire. The mesh can be woven in different weave styles. Its purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.
There are many types of Temperature Resistant Special Sintered Wire Mesh, ranging from 1 mesh to 3500 mesh. Different products have different scopes of application. We offer a variety of stainless mesh weave designs, styles and dimensions to fulfill your requirements.
Specification of Temperature Resistant Special Sintered Wire Mesh
|
Specification of Temperature Resistant Special Sintered Wire Mesh
|
|
Mesh
|
Wire Diameters.(mm)
|
Opening(mm)
|
|
8-28
|
0.3-1
|
0.8-2.66
|
|
35
|
0.17
|
0.56
|
|
40
|
0.23
|
0.40
|
|
50
|
0.20
|
0.31
|
|
60
|
0.15
|
0.27
|
|
70
|
0.12
|
0.24
|
|
80
|
0.13
|
0.19
|
|
90
|
0.12
|
0.16
|
|
100
|
0.10
|
0.15
|
|
120
|
0.09
|
0.12
|
|
150
|
0.063
|
0.11
|
|
180
|
0.053
|
0.09
|
|
200
|
0.053
|
0.07
|
|
220
|
0.05
|
0.065
|
|
250
|
0.04
|
0.062
|
|
270
|
0.035
|
|
Application of Temperature Resistant Special Sintered Wire Mesh
Temperature Resistant Special Sintered Wire Mesh offer flat surface, firm structure and good integrity. Widely used in mining, petroleum, chemical, food, pharmaceutical, new energy, new materials, battery, chemical fiber and other industries for sieving and classification or filtration separation.
